DESCRIPTION
HSS BI-METAL BLADE
Industry Leading Band Saw Blades
AMADA MODIFIED M42 HSS General-Purpose Blade Ideal for Cutting Mild Steel & Structural Steel.
“Chip Curler” Tooth Shape & Unique Set Pattern Result in Longer Blade Life.
RESOURCES
Download Brochure & Specification Sheet
Features
- Modified M42 High-Speed Steel Edge
-
Chip Curler Tooth Shape
- Improves chip removal and reduces the impact on the bottom of the gullet resulting in a better life. Cobalt8 is ideally suited to cut mild steel.
-
Distinctive Set Pattern

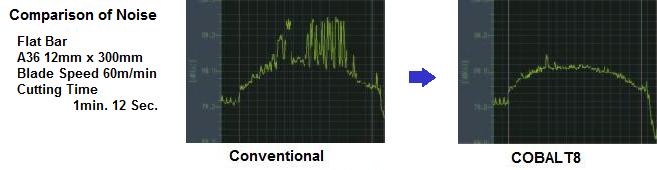

- Reduces noise and vibrations during cutting resulting in much longer blade life and noticeably better cutting performance as well.
- Enhanced Chipping Resistance
- Improved Tooth Penetration
| Edge Material | Amada Modified M42 HSS |
|---|---|
| Hardness of Tooth Tip | 930HV |
| Wear Resistance (1 – 5) | ** |
| Chipping Resistance (1-5) | **** |
LINEUP OF PRODUCTS
| inch (Wide) | mm (Wide) | inch (Thick) | mm (Thick) | 2/3 | 3/4 | 4/6 | 5/7 |
|---|---|---|---|---|---|---|---|
| 1″ | 27 | 0.035″ | 0.9 | V | V | V | |
| 1 1/4″ | 34 | 0.042″ | 1.1 | V | V | V | V |
| 1 1/2″” | 41 | 0.050″ | 1.3 | V | V | V | V |
| 2″ | 54 | 0.063″ | 1.6 | V | V | V |
V: Variable Positive Rake
